Q585 piled and released type abrasive shot blasting machine

FOB Reference Price:Get Latest Price
US $4,000-8,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Q585 Q583 Q588 Q5810
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
China
Brand Name:
KAITECH
Feature:
Rust / Corrosion Inhibitor
Fuel:
Electric
Certification:
CE
Use:
Burnishing, Container / Bottle Cleaning, Descaling / Stripping
Cleaning Process:
METAL ABRASIVE
Cleaning Type:
Manual
Industry Used:
Foundry,Forging,auto
Material:
Steel
Power(W):
Nonstandarded
Dimension(L*W*H):
Nonstandarded
After-sales Service Provided:
Overseas service center available
Type:
piled and released
Application:
surface cleaning
Supply Ability
Supply Ability:
15000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden cases, container
Port
QINGDAO,CHINA

Q58-1Q58-4Q58-6

Product Features:

1.It could be continuous running,it also could be batch or intermittent running. It is flexible production and high productivity.



2.Casting could pass-through shot blasting zone at lower speed or it will carry out multi position rotation in shot blasting area.It has good cleaning effect.



3.It could be static loading and unloading material and it is easy for operation.



Production Application:

It mainly used for removing sand and surface cleaning of less variety ,mass production and multi variety, middle-small batch production casting.It is widely used.



Specification:



Parameter

Unit

Q583

Q585

Q5810

Q588

cleaning workpiece size

Diameter(mm)

800 x1500

800 x1200

1300 x2800

550 x2200

station No.

set

2

4

6

4

blasting wheel quantity

kg

4

6

6

4

blasting capacity

kg/min

4 x250

6 x360

6 x330

4 x480

blasting wheel power

kw

4 x15

6 x22

6x22

4 x22

the max capacity weight of hook

kg

300

500

1000

800

Productivity of every hook

h

40

55

50

30

cleaning room size

mm

3062 x1800 x2800

8500 x1800 x3885

8500 x2300 x4800

6800 x2600 x3325

total ventilation volume

m³/h

15000

18000

18000

17200

total power

kw

74.5

186.85

186.85

121.05

Company Information

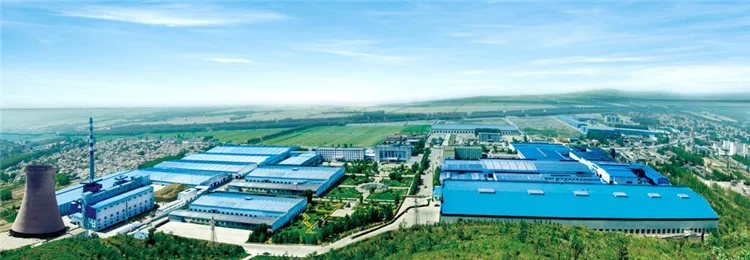

Shandong Kaitai Shot Blasting Machinery Share Co.,ltd established in 2000 year, is a professional manufacturer and exporter that is concerned with the design,development and production of shot blasting machine&sand blasting booth.We are located in Zouping, near Jinan airport of shandong province with convenient transportation access.All of our products comply with international quality standards and we have exported more than 80 countries.We have over 1800 employees in domestic and abroad.

Our company promise: reasonable prices,short production time and satisfactory after-sales service.
