Double hook shot blasting machine

  • 1 - 1 Sets
    US $12000.00
  • 2 - 4 Sets
    US $11000.00
  • >=5 Sets
    US $10000.00
Model Number:
Q376/Q378/Q3710/Q3720
Feature:
Non-Toxic Rust / Corrosion Inhibitor
Industry Used:
Electronic Industry Other Foundry
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
CHINA
Brand Name:
KAITAITECH
Fuel:
Electric
Certification:
CE
Use:
Burnishing, Deflashing, Descaling / Stripping
Cleaning Process:
Steel shot
Cleaning Type:
Clean-In-Place (CIP)
Material:
Steel, Iron,stainless steel
Power(W):
36KW
Dimension(L*W*H):
1800B*1800L*2710H(mm)
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Overseas third-party support available
Type:
Q37 type
Sand Blasting Machine:
Movable Surface Cleaning Machine
Color:
Blue
Voltage:
380-440V
Blast wheel:
2 blasting wheels
Blasting media:
Steel shot S460
Application:
Rust Removal
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude packing, spare parts in plywood cases.
Port
QINGDAO,CHINA
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 30 To be negotiated
Video Description
Product Description

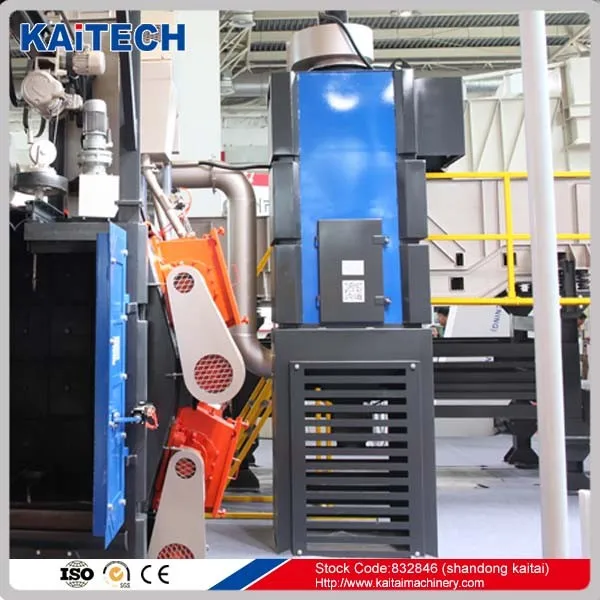

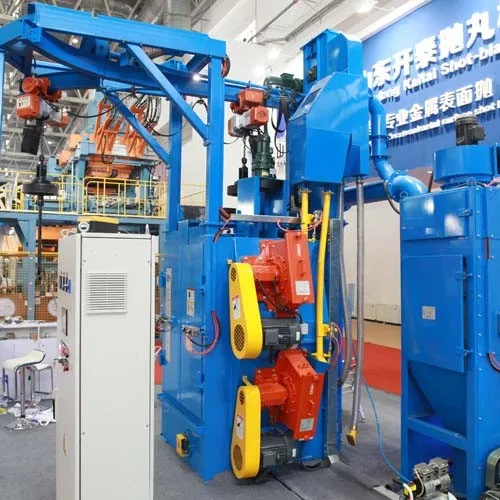

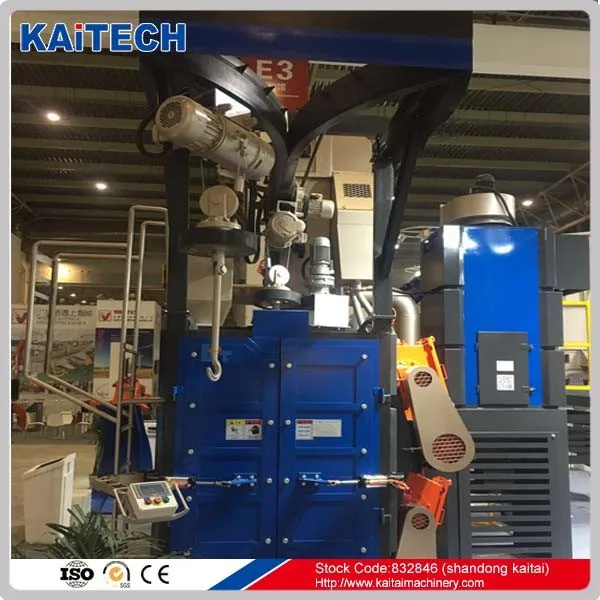

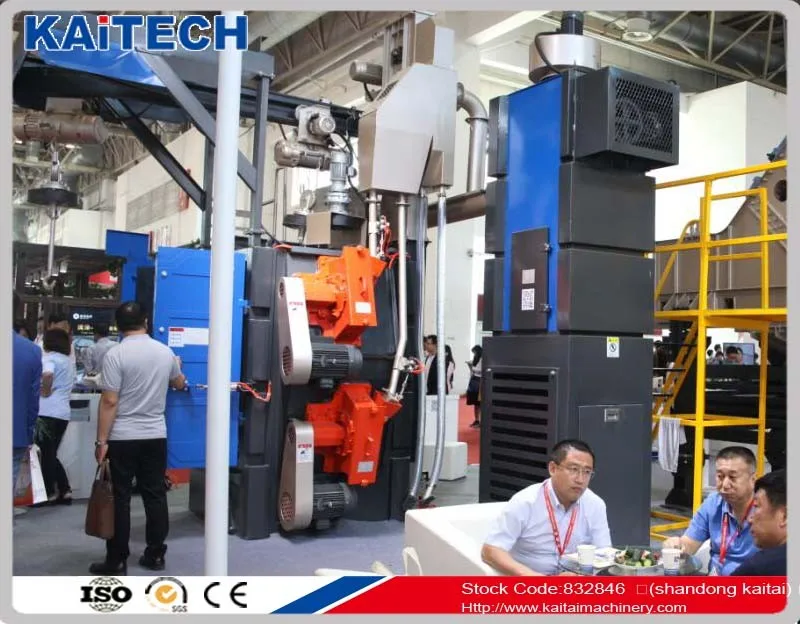

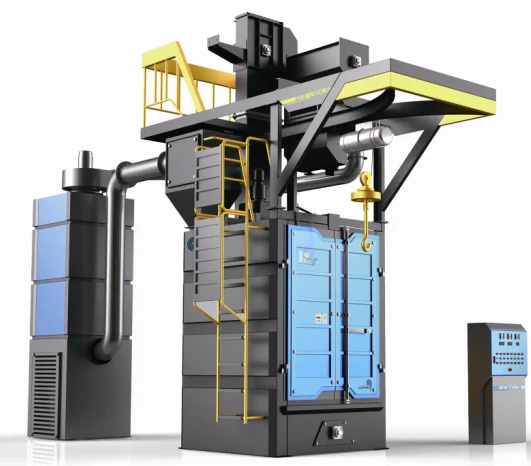

Double hook shot blasting machine

Application:

Hanger shot blast machine  is widely used for cleaning the surface of various castings, structural parts, non-ferrous alloy parts and other parts. Specifically,hanger shot blast machine can deal with workipieces with diameters ranging from 500 mm to 2000 mm and heights from 1000 mm to 2500 mm.hanger shot blast machine  suitable for surface cleaning of mediumsmall casting.sometimes it also replace trolley type shot blasting machine for cleaning bigger casting along with increasing of loading of hook.





Technical parameters:



1

Cleaning room

1

dimension:2000B×2000L×2900H(mm)

effective cleaning scope:1200×1500(mm)

Door is Manual operation

Door is linkage and top is sealing



2

Blasting wheel

2

Blasting capacity: 2×220Kg/min

blasting speed: 73m/s

Driving mode:belt

transmission

Motor power : 2×15kw

3

Elevator

1

Lifting capacity:45T/h

Power: 5.5KW

4

Screw

conveyor

1

Lifting capacity:45T/h

Power: 2.2KW

5

Separator

1

Separation quantity45T/h

Wind speed of separation

Zone: 4-5m/s

full curtain wind choice

separating result>99%

6

Shot gate

2

DK28

Cylinder control

7

Hook system

1

Max loading capacity:1000Kg

Rise-decrease speed:8m/min

Running speed:10m/min

Lifting power:2×1.5KW

Running power:2×0.4KW

8

Self-rotation system

1

Rotation speed:4r/min

power:0.75KW

9

Dust collector

1

model:  FBD-48

ventilation:  5500m3/h

Fan power: 5.5KW

Vibration motor power: 0.55KW

10

Total power



~48.3KW

Working voltage:  380V/50HZ



11

Compressed air

buyer

Air pressure:0.4~0.6MPa

consumption:  0.1m3/min

12

Metal abrasive loading for first time



~1500Kg

Steel shot will be bought by buyer

13

Dust emission

According to GB16297-1996 Integrated emission standard of air pollutants, the figure should below  120mg/m3

14

The noise of equipment

According to JB/T7459.1-1999 single hanger type shot blasting machine technology condition, the noise should below 95dB





Advantage:Our Q37 spinner hanger shot blast machine comes in single hanger style and double hanger style. With the advantages of no pit, compact structure and high productivity.


Packaging & Shipping

Smalll parts will use brown paper, and then place into tight plywood case.

Large parts will use plastic film, and then place onto frame.







Our Services

♦1. Supply professional shot blasting and peening technology solve solution:





♦2.Supply guide installation and after sales service:



♦3.Spare parts & Metal Abrasive





FAQ

Q:.How long can the spare parts be used?

A: Generally, the blade can be used about 600 hours, distributor ,control cage can up to 800-1000hours,liners in the shot blasting room for 6000hours.



Q:How to install the machine?

A:As standars machine, we will send installation cedio, As non-standard machine,We will arrange 1~2 engineers to your factory to guide installation and assembly.



Q: Do you sell steel shot or steel grit which can be uses in shot blasting machine?

A: We have four production lines for steel shot and steel grit production.We also supply metal abrasive.



Q:How I visit your company?

You can arrive at Jinan /Zibo station or Jinan airport, we will pick you up.
